在k8s集群上部署kite

简介

正常我是不会写这种博客的，因为很无聊，但是这篇不一样，涉及到了vcluster的使用，gateway class 的使用

介绍下kite

kite是一个现代、轻量级的 Kubernetes 仪表板

https://github.com/zxh326/kite

背景补充

为什么用 vcluster?
本地开发时常遇到环境隔离不足、配额影响他人等问题，用 vcluster 可以在单一 K8s 集群下定制出独立的“虚拟集群”，高度隔离，适合多开发者/多租户/实验环境。
为什么不用 Ingress 而用 Gateway?
Kubernetes Gateway API 设计更现代，解耦了流量入口、路由、底层实现，便于可插拔、可扩展和定制，配合 Envoy Proxy 可实现企业级网关能力。

创建一个新的vcluster

首先安装vcluster

brew install loft-sh/tap/vcluster

之后创建一个集群

vcluster create kite-cluster --namespace kite-cluster

bboysoul~/trash/test on ☁️  (ap-northeast-1)
❯ vcluster create kite-cluster --namespace kite-cluster
15:27:43 info Creating namespace kite-cluster
15:27:43 info Create vcluster kite-cluster...
15:27:43 info execute command: helm upgrade kite-cluster /var/folders/g3/l8p2vcrx71l527zk65w78czm0000gn/T/vcluster-0.27.0-alpha.4.tgz-1290611838 --create-namespace --kubeconfig /var/folders/g3/l8p2vcrx71l527zk65w78czm0000gn/T/2193626761 --namespace kite-cluster --install --repository-config='' --values /var/folders/g3/l8p2vcrx71l527zk65w78czm0000gn/T/1950695875
15:27:48 done Successfully created virtual cluster kite-cluster in namespace kite-cluster
15:27:51 info Waiting for vcluster to come up...
15:28:09 done vCluster is up and running
Forwarding from 127.0.0.1:12083 -> 8443
Forwarding from [::1]:12083 -> 8443
Handling connection for 12083
15:28:10 done Switched active kube context to vcluster_kite-cluster_kite-cluster_home
15:28:10 warn Since you are using port-forwarding to connect, you will need to leave this terminal open
- Use CTRL+C to return to your previous kube context
- Use `kubectl get namespaces` in another terminal to access the vcluster

这里介绍下一种切换到vcluster的方法

vcluster connect kite-cluster -n kite-cluster --print > ./vcluster-kite.config
export KUBECONFIG=$(pwd)/vcluster-kite.config

现在你所有 kubectl 命令都针对虚拟集群生效！

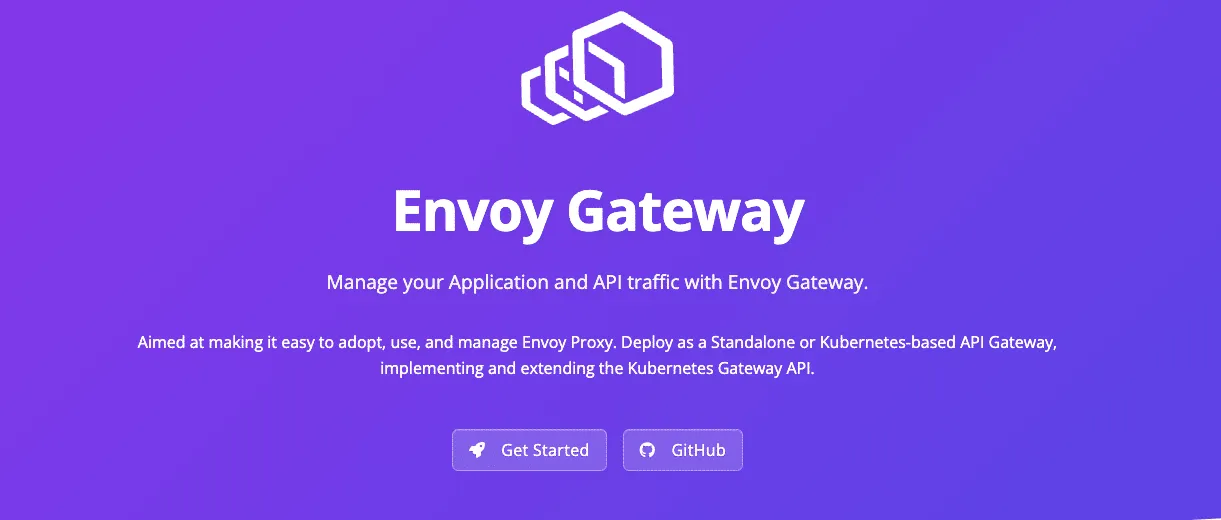

部署Envoy Gateway

可通过官方 release 的 yaml 一键部署

wget https://github.com/envoyproxy/gateway/releases/download/v1.4.2/install.yaml

kubectl apply -f install.yaml

部署kite

获取 kite 的部署文件，并创建资源

wget https://raw.githubusercontent.com/zxh326/kite/refs/heads/main/deploy/install.yaml

kubectl apply -f install.yaml

我们用 Gateway API 来暴露 kite 服务。以下示例资源 yaml 包括 HTTPRoute、Gateway、EnvoyProxy 自定义参数及 GatewayClass。

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: kite
  namespace: kube-system
spec:
  parentRefs:
    - name: eg
  hostnames:
    - "kite.example.com"
  rules:
    - backendRefs:
        - group: ""
          kind: Service
          name: kite
          port: 80
          weight: 1
      matches:
        - path:
            type: PathPrefix
            value: /
      timeouts:
        request: "60s"
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: eg
  namespace: kube-system
spec:
  gatewayClassName: eg
  infrastructure:
    parametersRef:
      group: gateway.envoyproxy.io
      kind: EnvoyProxy
      name: custom-proxy-config
  listeners:
    - name: http
      protocol: HTTP
      port: 80
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: custom-proxy-config
  namespace: kube-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        type: NodePort
      envoyDeployment:
        replicas: 2
---

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: eg
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller

这里 custom-proxy-config 的 envoyService.type 配置成 NodePort，因为在本地或某些云/k8s集群环境下无法直接用 LoadBalancer。想了解更多自定义参数和使用方式可查阅

https://gateway.envoyproxy.io/docs/tasks/operations/customize-envoyproxy/

访问

首先获取 Gateway 暴露的 NodePort

kubectl get service -A -o wide | grep envoy

如果端口是 30695 那么本地hosts绑定下kite.example.com这个域名就可以访问了kite.example.com:30695
